Hober 5.5Kw Solar Pumping inverter MPPT

KShs89,000

In stock

The Hober 5.5Kw Solar Pumping inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. TheHober 5.5Kw Solar Pumping inverter is appropriate for three-phase pumps with power requirements below 5500 Watts.

Download Hober 5.5Kw Solar Pumping inverter Datasheet

Estimated delivery date 2022/10/07
Compare

Hober 5.5Kw Solar Pumping inverter MPPT

The Hober 5.5Kw Solar Pumping inverter main functions include converting the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking. The inverter is appropriate for three-phase pumps with power requirements below 5500 Watts.

Features:

Smart:

Full automatic operation, no need programming, user-friendly

Modular design, easy install , operate & maintain

GPRS or SPMCS remote control for option

Efficient:

1:1 match to AC pumps with strong overload capacity

30% more water output with advanced inverter control algorithm

Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm

Good ROI (Return on Investment) against diesel powered pumping

Reliable:

Hybrid function – support solar power, grid power/generator input.

Multi power sources work as complementary to achieve system working 24 hours per day

IP65 design, continuous full-load operation between -10℃ to +60℃

Compatible with all AC pump types



Comprehensive Protections:

Soft start

DC Input Anti-reverse

AC Input/Output Phase lost(3Phase)

AC Output Short Circuit

AC Output Unbalance (3Phase)

Pump Dry run protection By sensor/ software

Water Over Flow of Tank

Solar Low power

Over Load

AC Output Over Current

Solar Pump Inverter Description

Hober 5.5Kw Solar water Pumping inverter Designed for Solar water pumping

HSPH is the latest generation of solar water pump inverter, It covers a wide power range from 0.75kW to 100kW with a wide range of pumps for submersible, surface applications.

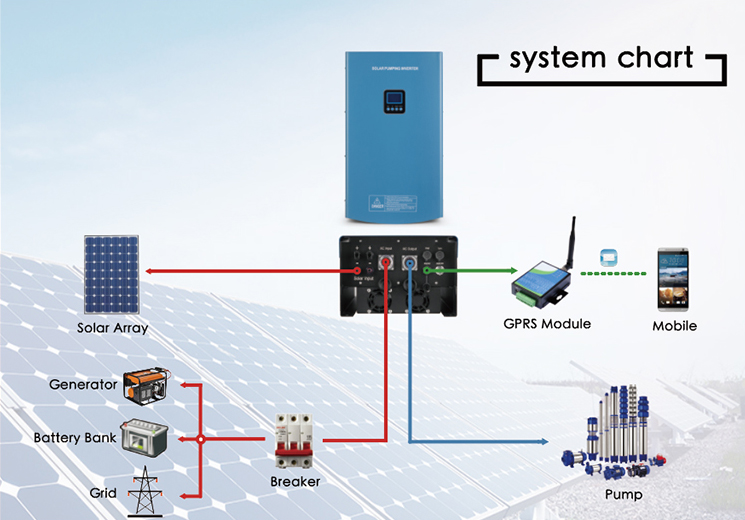

HSPH can be designed into an advanced solar pumping system, it can provide a ture hybrid pumping system which  automatically can blend grid power and generator power with the core solar power supply,

The Hober 5.5Kw Solar Pumping inverter system use the power of the sun to move water, so replacing the need for grid power or diesel. Whether your need is to reduce  the cost of water pumped, create low operational costs, or achieve the lowest project risk, HSPH provides the right solution for you.
Solar Pump Inverter Parameters
Hober Solar Pump Inverter Model
HSPH5500H
HSPH7500H
Solar Panel DC Input
Max Voc Voltage
780V
Min Vmp Voltage
400V
Recommend Vmp Voltage
>500V ( Only Solar )

>560V ( Hybrid Power )
Max MPPT efficiency
99%
Max Input Current
14A
20A
Number of Strings
2
2
Inside Booster
N
Note
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel, without Programming
Hybrid AC/Generator Input
Voltage
3 Phase 380/400/440V
Max Input Current
14A
19A
Hybrid Mode
Automatic, AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery
AC output ( For Pump, Aerator, Fan )
Max Adapted AC Pump HP
7.5HP
10HP
Max Adapted AC Pump Power
5.5kW
7.5kW
Drive Mode
Variable Frequency Drive 3 Phase
Max Output Voltage
380/400/440V
Max Output Frequency
50~60Hz ( Support program range 15-60Hz)
Max Output Current
13A
18A
Max Efficiency
97%
Water Level Sensor (Well / Tank)
Yes
GPRS SMS Monitor & Controller
Optional
Display
LCD display
Waterproof
IP65
Noise
<50dB
Cooling Method
Force Cooling by Fan ( IP68 )
Protection
Solar DC Input Low/Over Voltage; Solar DC input Reverse Polarity; AC output Short-circuit; Over Temperature; Over Flow of Tank; AgainstLightning; AC Input & Output Phase Lose; Dry-Run (detecting by Sensor or Software); AC output Unbalance
Operating Environment
Operating Evironment Temperature
-10 to 60℃, Above 60℃ need to derate load
Max Humudity
95%RH
Using Altitude
<3000m, Above 300m need to derate load
Others
Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid. etc
Package
Size
550*350*285MM
Weight
15Kg
16Kg

Hober 5.5Kw Solar Water Pumping inverter Features

Details Images

Download Hober 5.5Kw Solar Pumping inverter Datasheet
